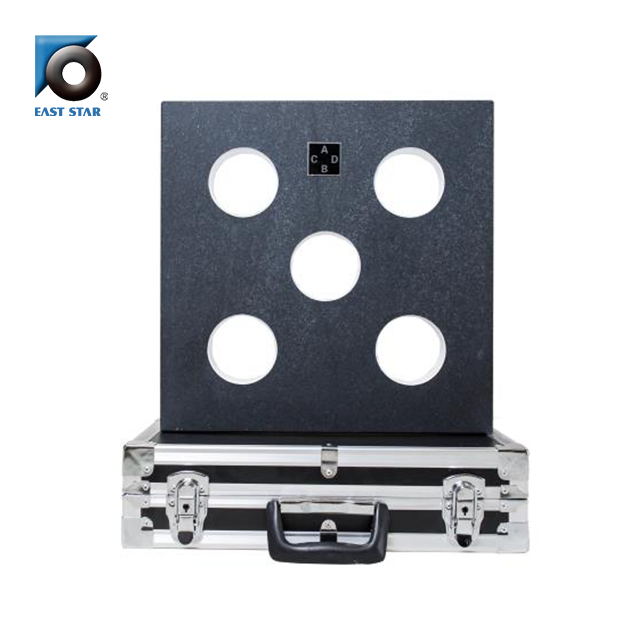

| 定货序号 Order No | 规格 Dimension (mm) | 精度等级 Grade | |||||||||
| 相邻两测量面间的垂直度Perpendicularity between the two measuring surfaces (μm） | 测量面的平面度的直线度 Flatness and beeline of the measuring surface (μm） | 相对测量面的平行度Parallelism between relative measuring surface (μm） | 两侧面对测面的垂直度 Perpendicularity between side surface & measuring surfaces(μm） | 两侧面平行度Paralldlism of the two side surface (μm） | |||||||
| 0 | 00 | 0 | 00 | 0 | 00 | 0 | 00 | 0 | 000 | ||
| CVA239001 | 100*100*20 | 3 | 1.5 | 1.4 | 0.7 | 3 | 1.5 | 30 | 15 | 72 | 18 |
| CVA239002 | 160*160*25 | 3.5 | 1.8 | 1.6 | 0.8 | 3.5 | 1.8 | 35 | 18 | 81 | 21 |
| CVA239003 | 200*200*25 | 4 | 2 | 1.8 | 0.9 | 4 | 2 | 40 | 20 | 96 | 24 |
| CVA239004 | 250*250*30 | 4.5 | 2.2 | 2 | 1 | 4.5 | 2.2 | 45 | 22 | 108 | 27 |
| CVA239005 | 300*300*30 | 5.2 | 2.6 | 2.3 | 1.1 | 5.5 | 2.6 | 52 | 26 | 124 | 31 |
| CVA239006 | 400*400*40 | 6 | 3 | 2.6 | 1.3 | 6 | 3 | 60 | 30 | 144 | 36 |
| CVA239007 | 500*500*50 | 7 | 3.5 | 3 | 1.5 | 7 | 3.5 | 70 | 35 | 168 | 42 |
| CVA239008 | 630*630*60 | 8.3 | 4.2 | 3.5 | 1.8 | 8.3 | 4.2 | 83 | 42 | 199 | 50 |
